Victron Energy Orion-XS 12/12-50A DC-DC Charger
Victron has moved on from the Orion-Tr Smart in the mid-range of its DC-DC charger lineup, and the Orion-XS 12/12-50A is where most owners upgrading will land — a genuinely smaller unit that pushes considerably more current, at the cost of the galvanic isolation the old Isolated model was built around.
Key features
- 50A continuous output (700W) — around 66% more current than the outgoing Orion-Tr Smart 30A unit
- 98.5% efficiency via a fanless aluminium circuit board design, minimal heat build-up
- IP65-rated sealed housing suited to exposed engine bay or underslung mounting
- Bluetooth, VE.Direct and DVCC connectivity through VictronConnect, with charge current adjustable in 0.1A steps
- Built for smart/variable-voltage alternators, including Euro 5 and Euro 6 vehicles
RV use case
This suits owners charging a larger lithium bank who were finding a 30A charger too slow, or anyone replacing an ageing Orion-Tr Smart with something smaller and more efficient. Worth being clear-eyed about the trade-off, though: this variant isn't galvanically isolated, so if a clean electrical break between the vehicle's starting circuit and the house battery was the actual reason you chose the old Isolated model, this isn't a straight swap.
Pros
- Meaningfully higher output in a smaller, lighter unit than the model it replaces
- Fanless, highly efficient design keeps heat down in tight mounting spaces
- IP65 sealed housing suits harsher underslung or engine bay locations
Cons
- Not galvanically isolated — a real consideration if that separation mattered to your original build
- 50A is more output than a smaller single-battery setup is likely to need
- Still requires the VictronConnect app for full configuration, same as the model before it
Best for
Owners charging larger lithium battery banks who want a smaller, more efficient DC-DC charger, and don't have a specific requirement for galvanic isolation between starting and house circuits.
Verdict
The Orion-XS is a straightforward upgrade in output and efficiency, not a like-for-like replacement for the Isolated model it succeeds — worth checking whether isolation was actually load-bearing in your original decision before assuming this is a drop-in swap.
Victron Energy Orion-XS 12/12-50A DC-DC Charger
Close-up of the input/output terminals and status LED

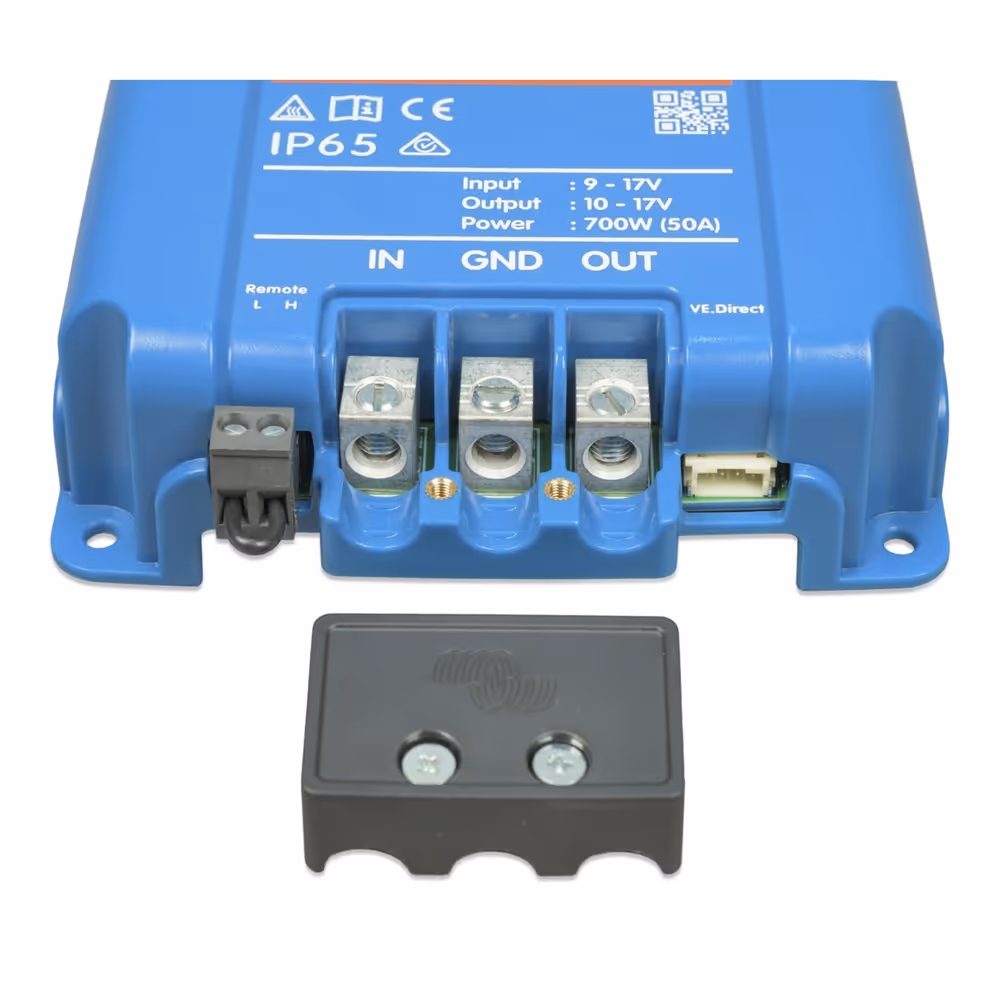

Close-up of the IN/GND/OUT terminal block with cover removed

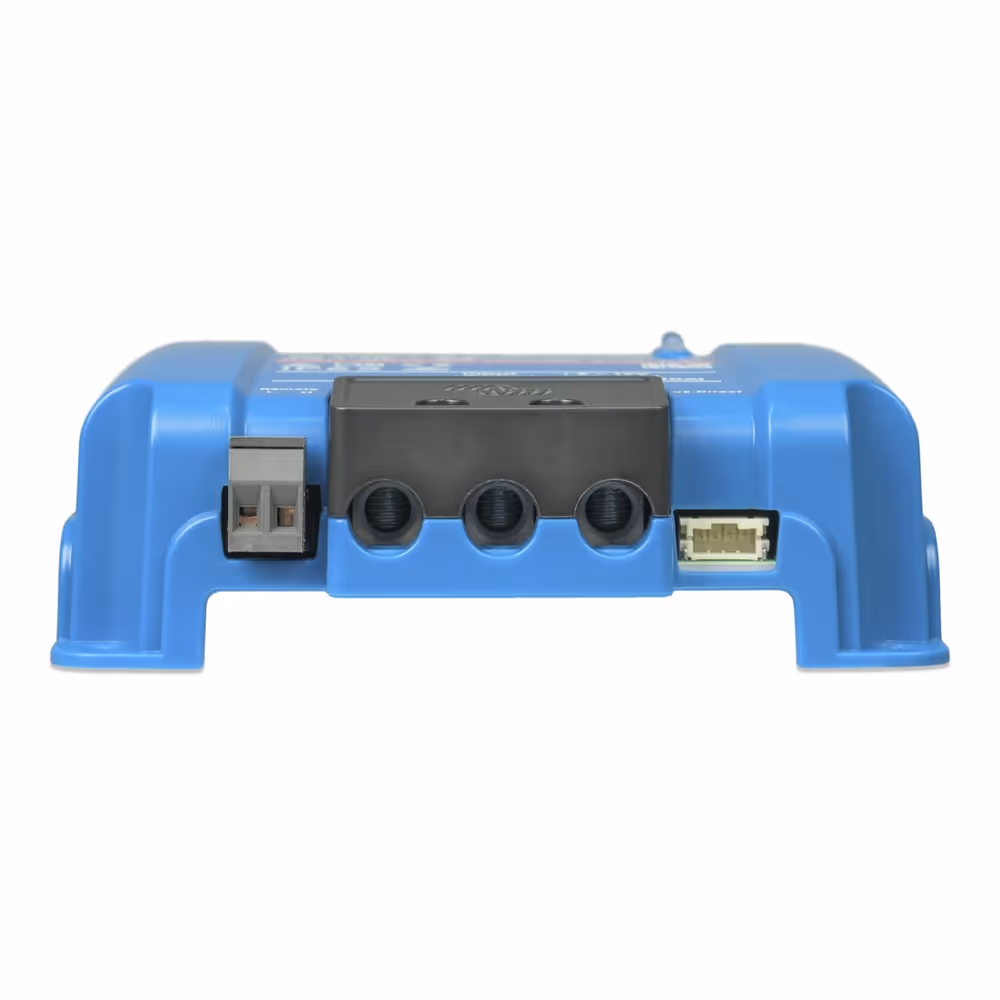

Rear view of the terminal block and connector housing
